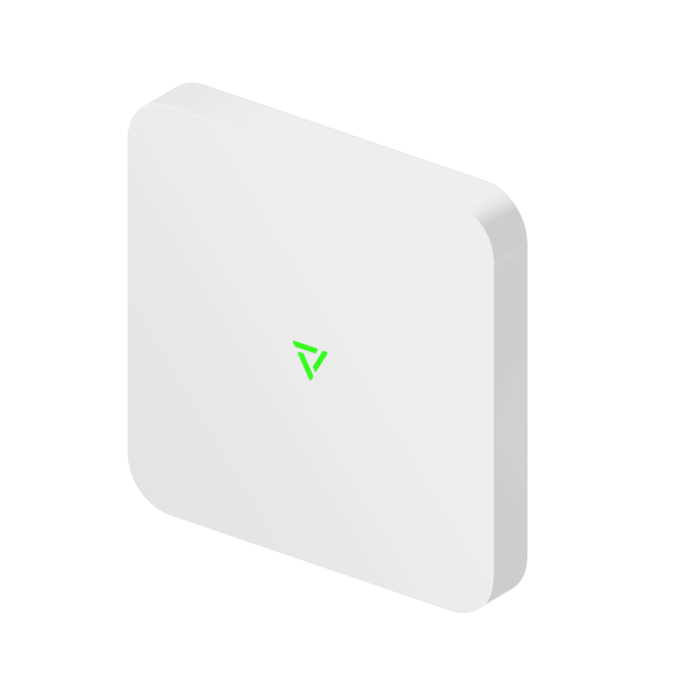

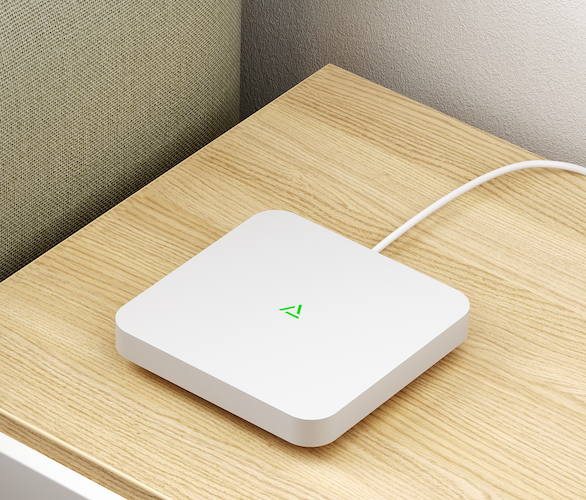

DEFED Smart Station – The Intelligent Gateway for Your Alarm System

The DEFED Smart Station is the core gateway for managing and monitoring your alarm system. Equipped with a colorful indicator, it provides a clear, visual representation of the system’s current state. With its versatile compatibility, the Smart Station supports multiple communication protocols such as CoSS, ZigBee, Z-Wave, WiFi, BLE, GSM, and optional 4G, ensuring seamless integration with a wide range of smart devices. Designed for reliability, it includes an 18-hour backup battery system for uninterrupted functionality. Its compact design, advanced technology, and efficient power backup make it ideal for homes, offices, and businesses.

FEATURES:

• Central gateway and information center for the alarm system.

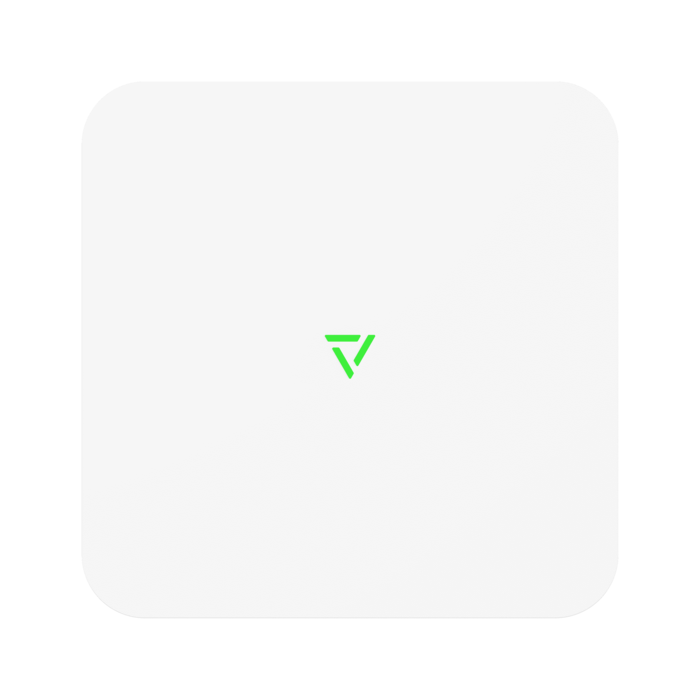

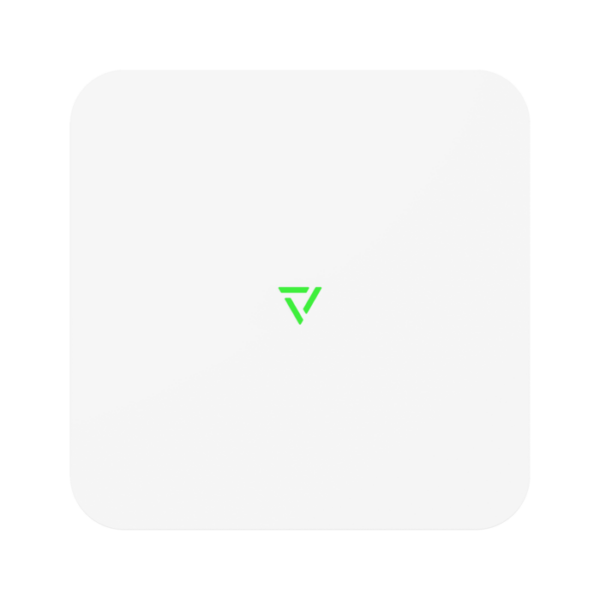

• Colorful indicator for visualizing the system’s current state.
• Multi-protocol support: CoSS, ZigBee, Z-Wave, WiFi, BLE, GSM, and optional 4G.
• 18-hour battery backup for uninterrupted operation.
• Compact and modern design, perfect for various environments.

SPECIFICATIONS:

• Model Number: LS205WH
• Operating Temperature: -5~45℃
• Operating Humidity: 5%~90%

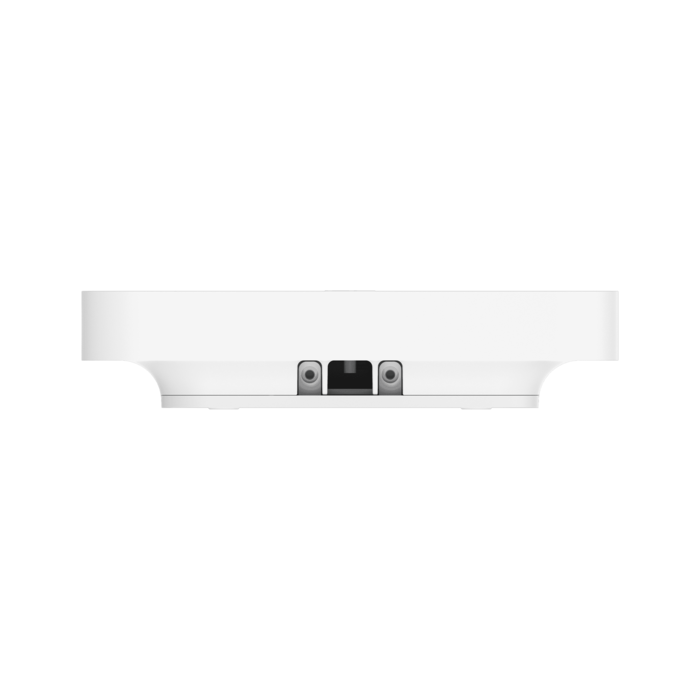

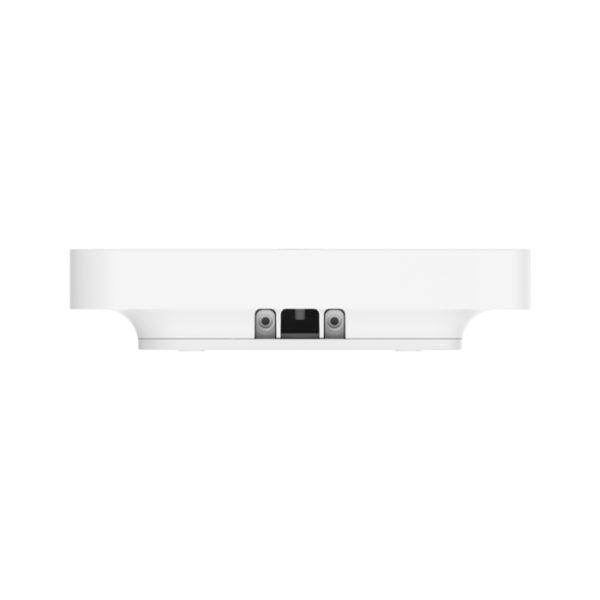

• Interface:
  • RJ45
  • DC Power Supply
  • SIM Card Slot (optional)
• Power Supply:
  • DC12V 1A
  • Battery Backup: 18650*2
  • Battery Life: Up to 18 hours
• Radio Protocols: CoSS, ZigBee, Z-Wave, WiFi, BLE, GSM, 4G (optional)
• Signal Range (Open Field): 800m

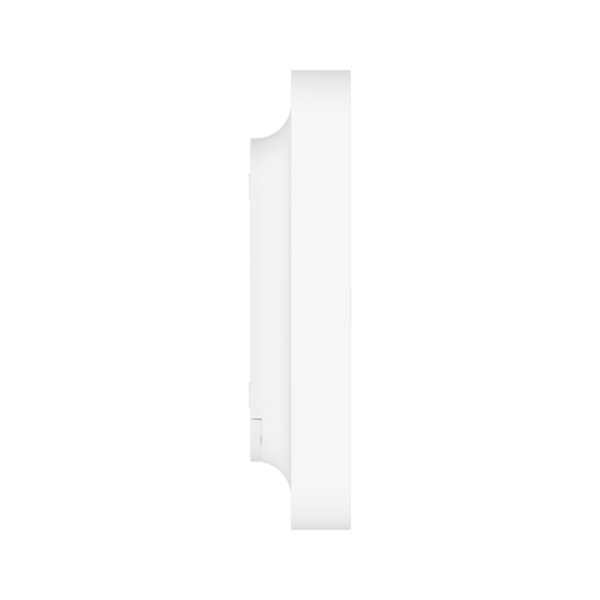

• Dimensions: 170 x 170 x 37mm
• Casing: ABS+PC
• Color: White
