Description

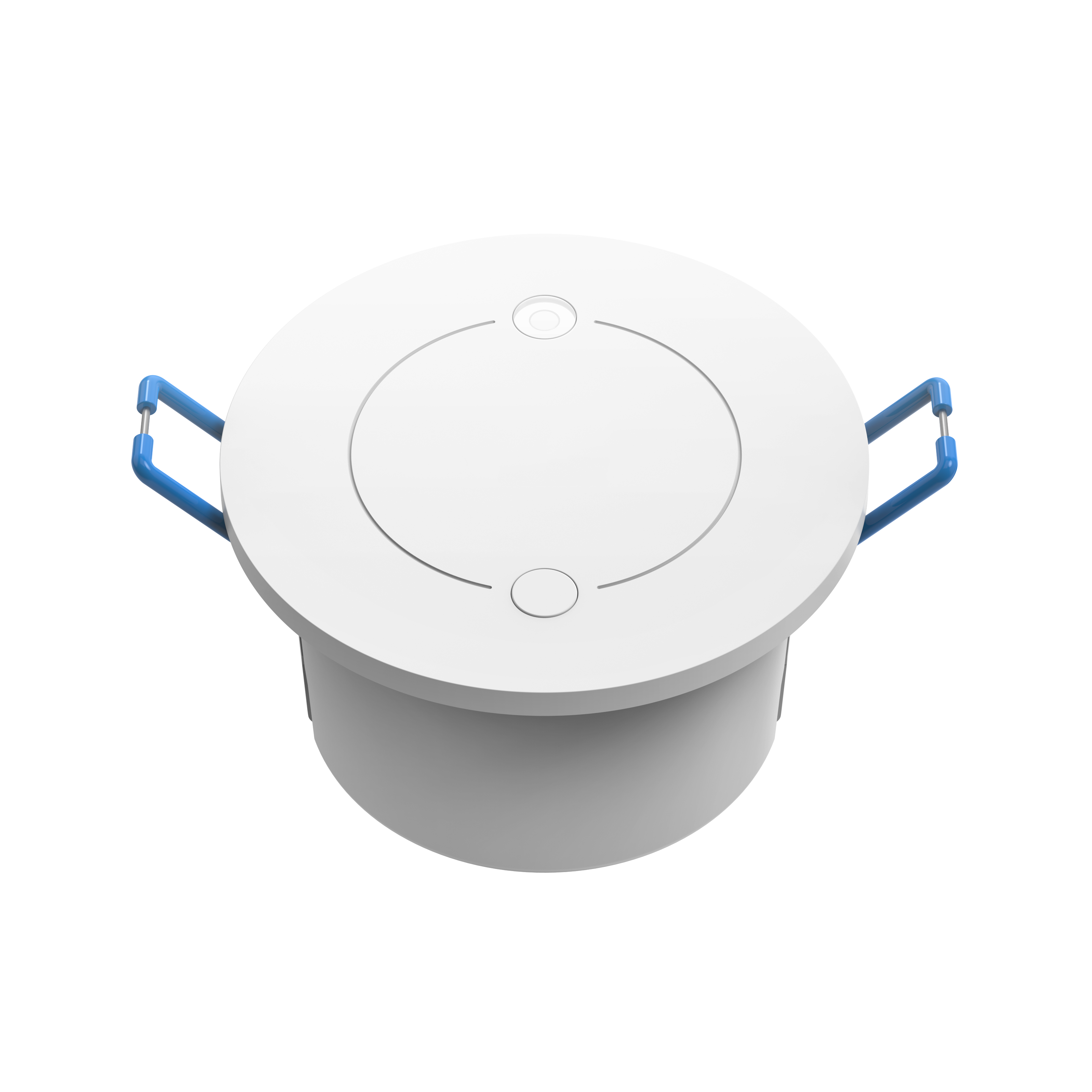

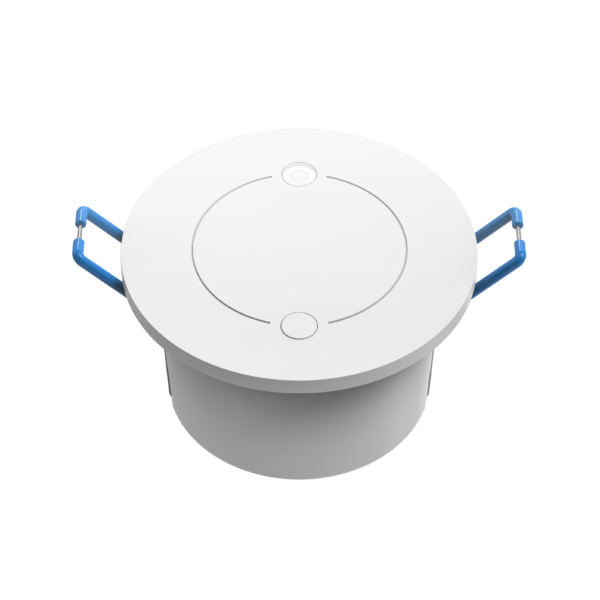

LifeSmart Human Presence Sensor (MIR-HE200) – Advanced Millimeter Wave Radar for Multi-State Detection

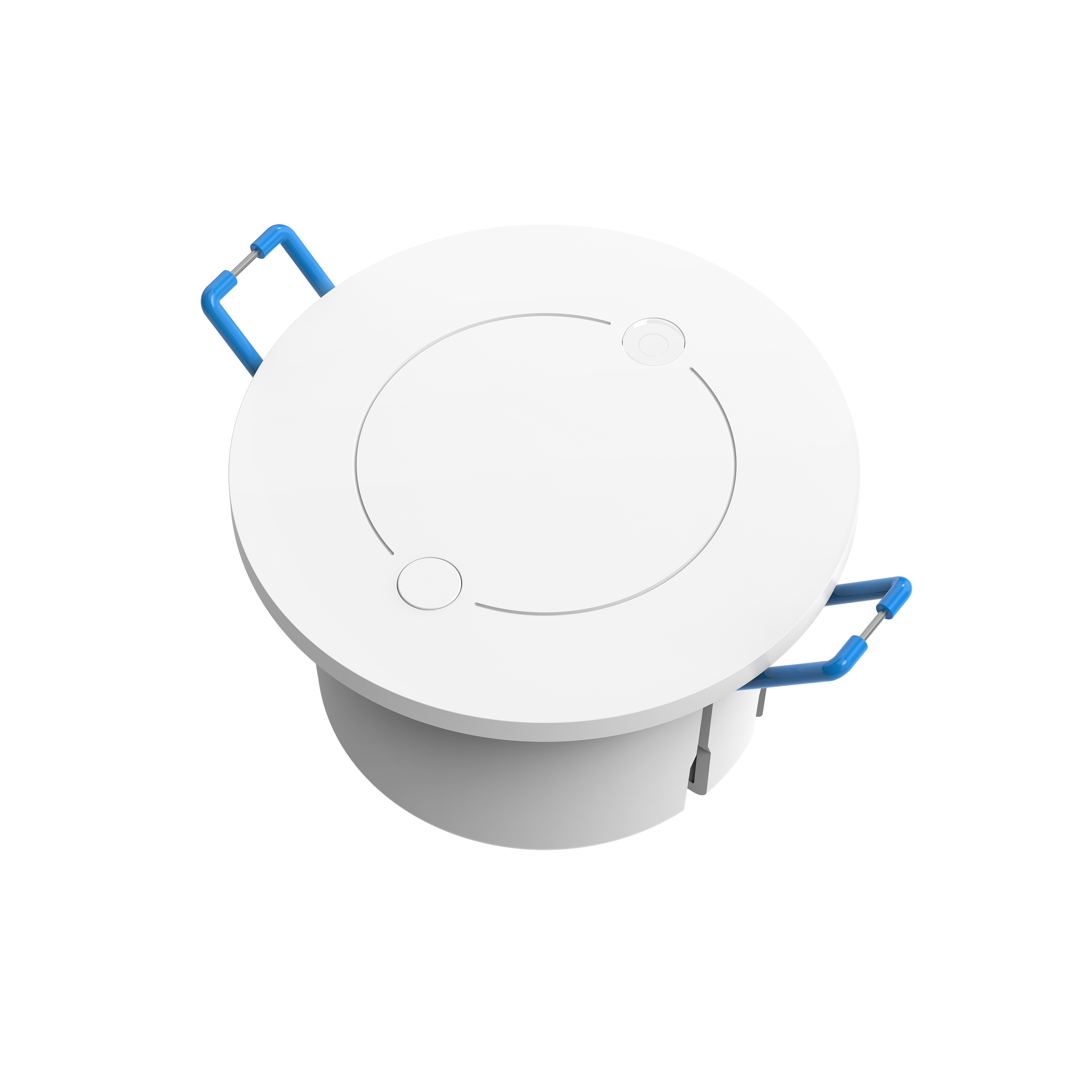

The LifeSmart Human Presence Sensor (MIR-HE200) is an advanced smart device that uses 24GHz millimeter wave Doppler radar sensing technology to provide precise detection of human presence. It can identify multiple states, including activity, rest, sleep, and unoccupied conditions, making it ideal for various environments such as homes, offices, and hotels. With a built-in light sensor, it also monitors luminous levels, enhancing its integration with smart systems. The sensor’s ceiling-mounted design ensures a neat and seamless installation while offering an extra-large detection range. Reliable, fast, and efficient, it reports changes within 0.5 seconds of detection, ensuring smooth smart scene activation.

FEATURES:

• 24GHz millimeter wave radar sensing module
• Supports multiple states: activity, rest, sleep, and unoccupied

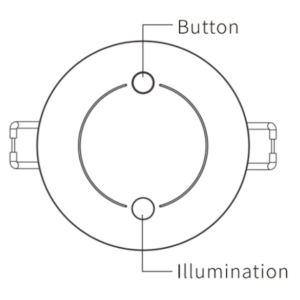

• Built-in light sensor for luminous detection

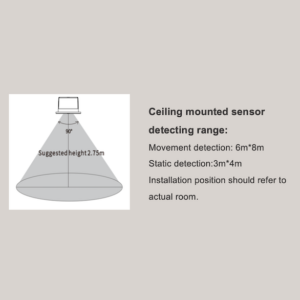

• Extra-large detection range
• Ceiling-mounted for a sleek and aesthetic design
• Fast response time for real-time status updates

SPECIFICATIONS:

• Model Number: MIR-HE200

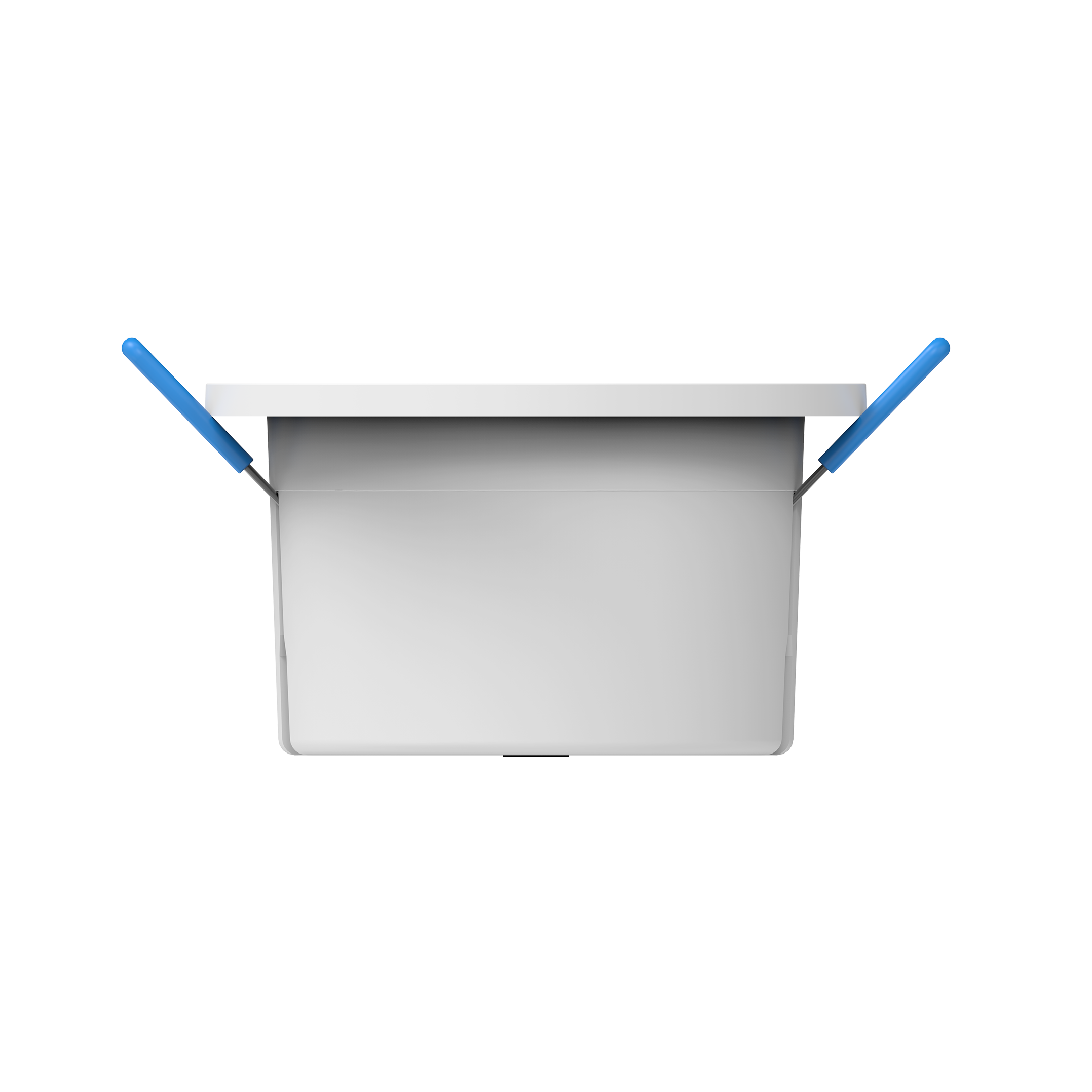

• Size: Φ80xΦ65x45mm
• Working Voltage: AC 100V-240V
• Wireless Technology: ZigBee 3.0
• Signal Range (Open Field): 100m
• Detection Type: Millimeter wave Doppler radar (24GHz)
• Response Time:
  • No one → Someone: ~0.5 seconds
  • Someone → No one: ~2 minutes
• Luminous Range: 0-65535 lux
• Working Temperature: -10℃ to +55℃
• Working Humidity: 5%~95% RH (non-condensing)

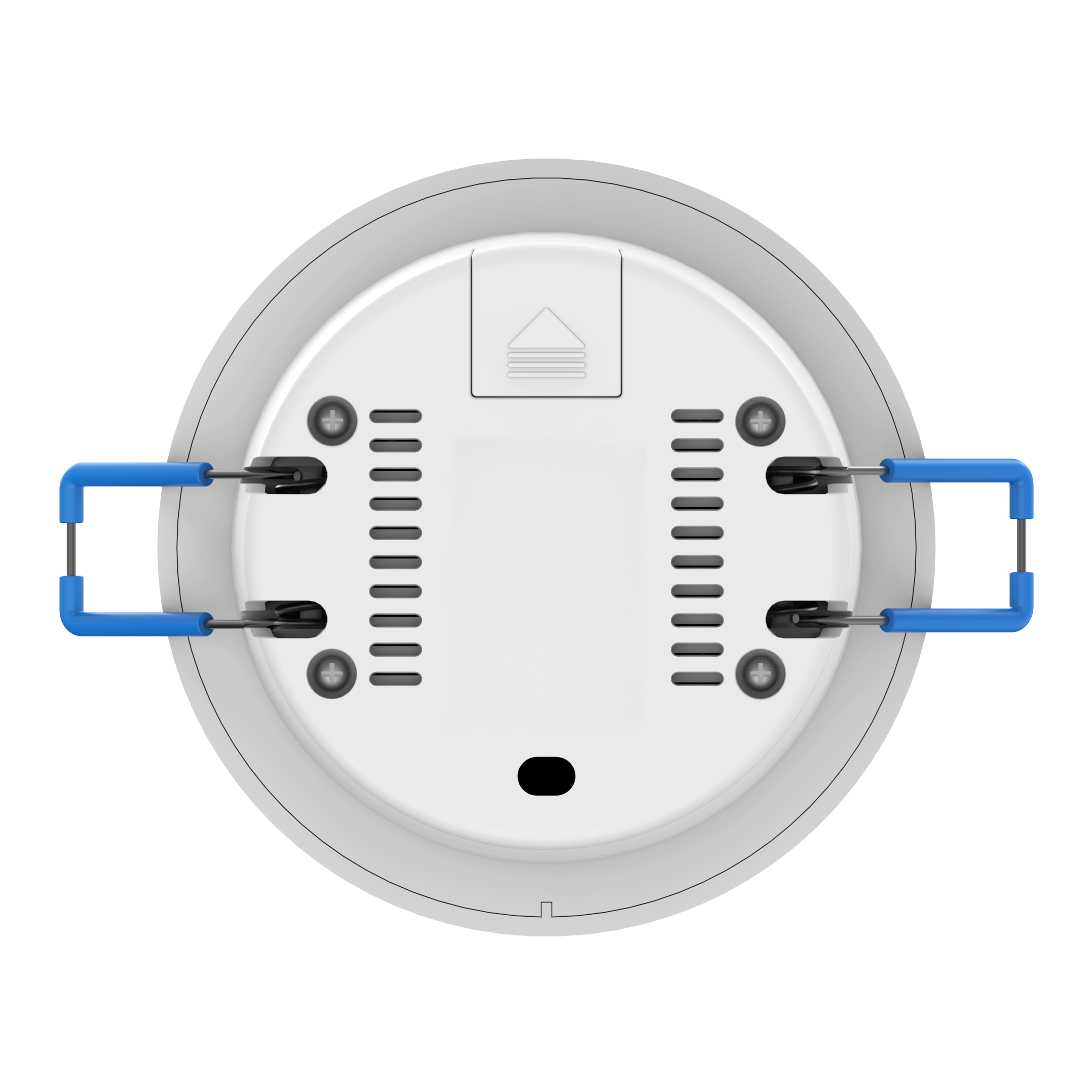

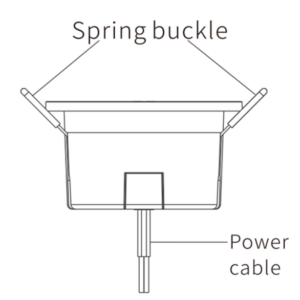

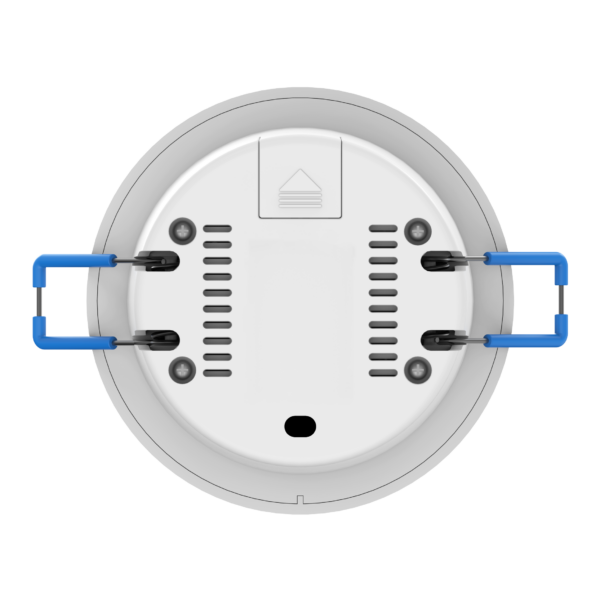

• Installation Method: Ceiling mount
• Product Life: 5 years
