Description

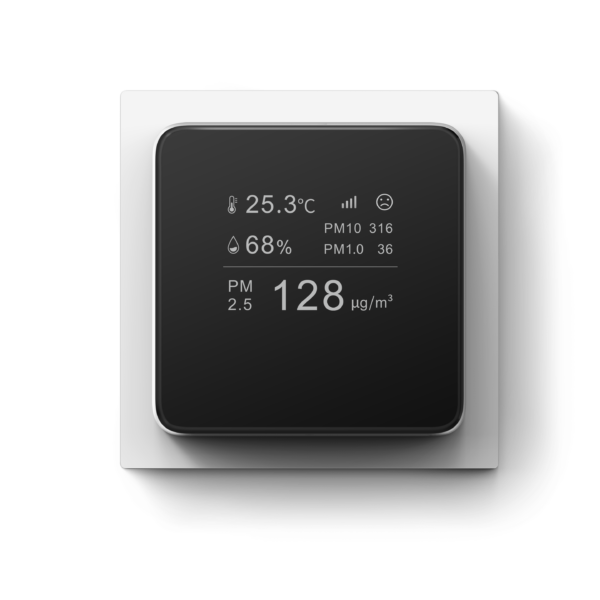

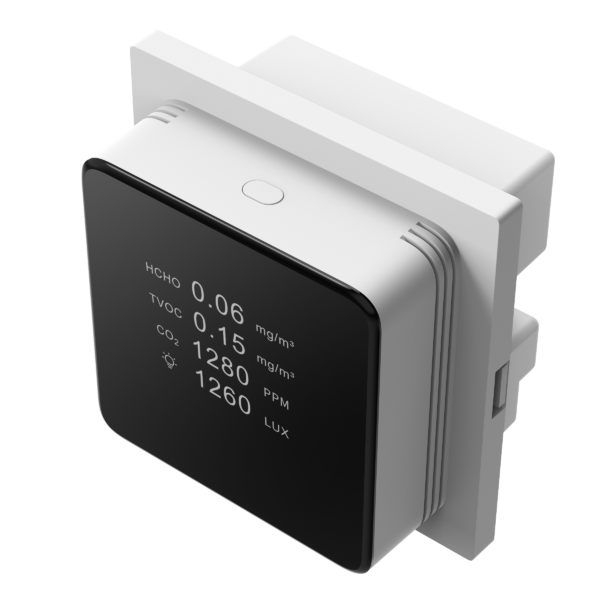

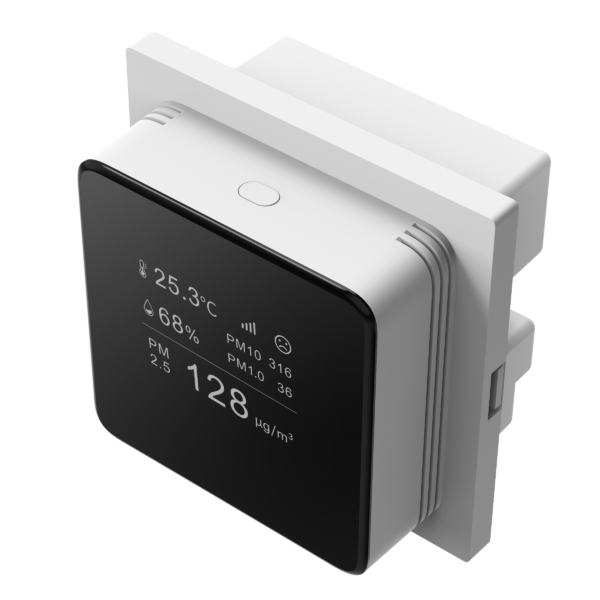

LifeSmart In-wall Air Quality Detector (ZigBee) – Intelligent Air Monitoring for Healthier Living

The In-wall Air Quality Detector is an innovative air quality monitoring terminal that seamlessly integrates with modern smart environments. Equipped with high-precision sensors, it provides accurate readings for PM2.5, temperature, humidity, and optional detection of formaldehyde, CO2, and TVOC levels. Its sleek TFT display delivers real-time data, while a companion mobile app ensures remote monitoring and smart linkage for proactive air quality management. Perfect for residential, commercial, and industrial settings, this device enhances health, comfort, and energy efficiency. With its embedded 86-box installation, the detector is both aesthetically pleasing and functional.

FEATURES:

• Built-in high-precision sensors for reliable and stable monitoring.
• Real-time air quality display on a clear TFT screen.
• 24-hour air quality monitoring for continuous health awareness.
• Mobile app connectivity for remote air quality checks.
• Elegant and convenient embedded installation.
• Intelligent linkage to smart systems for improving air quality automatically.

SPECIFICATIONS:

General:

• Model Number: PMT300
• Size: 86mm×86mm×59mm (L×W×D)
• Working Voltage: AC 100V-240V

Detection Types Supported:

• PM2.5, Formaldehyde (optional), CO2 (optional), TVOC (optional)

Display:

• Screen Type: TFT

Wireless Technology:

• Protocol: ZigBee 3.0
• Signal Range (Open Field): 80m

Performance:

• RF Power: ≤ 10dBm
• Working Temperature: -10°C～+55°C
• Working Humidity: 0〜99%RH (non-condensing)

Installation:

• Embedded 86-box installation for a sleek, modern design.
